Simulation

Simulators allow PX4 flight code to control a computer modeled vehicle in a simulated "world". You can interact with this vehicle just as you might with a real vehicle, using QGroundControl, an offboard API, or a radio controller/gamepad.

Simulation is a quick, easy, and most importantly, safe way to test changes to PX4 code before attempting to fly in the real world. It is also a good way to start flying with PX4 when you haven't yet got a vehicle to experiment with.

PX4 supports both Software In the Loop (SITL) simulation, where the flight stack runs on computer (either the same computer or another computer on the same network) and Hardware In the Loop (HITL) simulation using a simulation firmware on a real flight controller board.

Information about available simulators and how to set them up are provided in the next section. The other sections provide general information about how the simulator works, and are not required to use the simulators.

Supported Simulators

The following simulators work with PX4 for HITL and/or SITL simulation.

Instructions for how to setup and use the simulators are in the topics linked above.

The remainder of this topic is a "somewhat generic" description of how the simulation infrastructure works. It is not required to use the simulators.

Simulator MAVLink API

All simulators communicate with PX4 using the Simulator MAVLink API. This API defines a set of MAVLink messages that supply sensor data from the simulated world to PX4 and return motor and actuator values from the flight code that will be applied to the simulated vehicle. The image below shows the message flow.

A SITL build of PX4 uses simulator_mavlink.cpp to handle these messages while a hardware build in HIL mode uses mavlink_receiver.cpp. Sensor data from the simulator is written to PX4 uORB topics. All motors / actuators are blocked, but internal software is fully operational.

The messages are described below (see links for specific detail).

Default PX4 MAVLink UDP Ports

By default, PX4 uses commonly established UDP ports for MAVLink communication with ground control stations (e.g. QGroundControl), Offboard APIs (e.g. DroneCore, MAVROS) and simulator APIs (e.g. Gazebo). These ports are:

• Port 14540 is used for communication with offboard APIs. Offboard APIs are expected to listen for connections on this port.
• Port 14550 is used for communication with ground control stations. GCS are expected to listen for connections on this port. QGroundControl listens to this port by default.
• Port 14560 is used for communication with simulators. PX4 listens to this port, and simulators are expected to initiate the communication by broadcasting data to this port.

The ports for the GCS and offboard APIs are set in configuration files, while the simulator broadcast port is hard-coded in the simulation MAVLink module.

SITL Simulation Environment

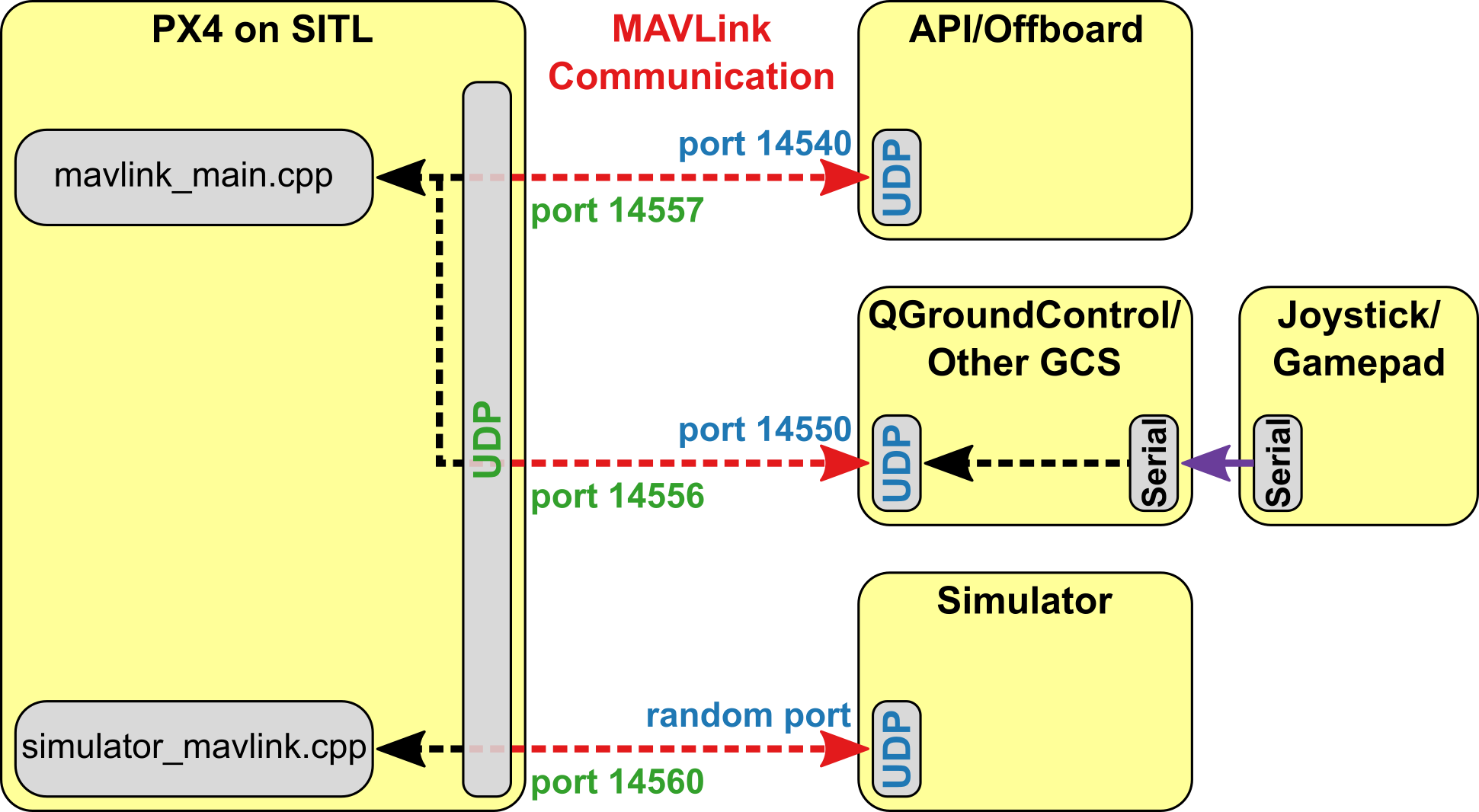

The diagram below shows a typical SITL simulation environment for any of the supported simulators. The different parts of the system connect via UDP, and can be run on either the same computer or another computer on the same network.

• PX4 uses a simulation-specific module to listen on UDP port 14560. Simulators connect to this port, then exchange information using the Simulator MAVLink API described above. PX4 on SITL and the simulator can run on either the same computer or different computers on the same network.
• PX4 uses the normal MAVLink module to connect to GroundStations (which listen on port 14550) and external developer APIs like DroneCore or ROS (which listen on port 14540).
• A serial connection is used to connect Joystick/Gamepad hardware via QGroundControl.

If you use the normal build system SITL make configuration targets (see next section) then both SITL and the Simulator will be launched on the same computer and the ports above will automatically be configured. You can configure additional MAVLink UDP connections and otherwise modify the simulation environment in the build configuration and initialisation files.

Starting/Building SITL Simulation

The build system makes it very easy to build and start PX4 on SITL, launch a simulator, and connect them. For example, you can launch a SITL version of PX4 that uses the EKF2 estimator and simulate a plane in Gazebo with just the following command (provided all the build and gazebo dependencies are present!):

make posix_sitl_ekf2 gazebo_plane

It is also possible to separately build and start SITL and the various simulators, but this is nowhere near as "turnkey".

The syntax to call make with a particular configuration and initialisation file is:

make [CONFIGURATION_TARGET] [VIEWER_MODEL_DEBUGGER]

where:

• CONFIGURATION_TARGET: has the format [OS][_PLATFORM][_FEATURE]

  • OS: posix, nuttx, qurt
  • PLATFORM: SITL (or in principle any platform supported among the different OS: bebop, eagle, excelsior, etc.)
  • FEATURE: A particular high level feature - for example which estimator to use (ekf2, lpe) or to run tests or simulate using a replay.

  You can get a list of all available configuration targets using the command:

  make list_config_targets


• VIEWER_MODEL_DEBUGGER: has the format [SIMULATOR]_[MODEL][_DEBUGGER]

  • SIMULATOR: This is the simulator ("viewer") to launch and connect: gazebo, jmavsim
  • MODEL: The vehicle model to use (e.g. iris, rover, tailsitter, etc). This corresponds to a specific initialisation file that will be used to configure PX4. This might define the start up for a particular vehicle, or allow simulation of multiple vehicles (we explain how to find available init files in the next section).
  • DEBUGGER: Debugger to (optionally) use: none, ide, gdb, lldb, ddd, valgrind, callgrind. For more information see Simulation Debugging.

  You can get a list of all available VIEWER_MODEL_DEBUGGER options using the command:

  make posix list_vmd_make_targets


Notes:

• Most of the values in the CONFIGURATION_TARGET and VIEWER_MODEL_DEBUGGER have defaults, and are hence optional. For example, gazebo is equivalent to gazebo_iris or gazebo_iris_none.
• You can use three underscores if you want to specify a default value between two other settings. For example, gazebo___gdb is equivalent to gazebo_iris_gdb.
• You can use a none value for VIEWER_MODEL_DEBUGGER to start PX4 and wait for a simulator. For example start PX4 using make posix_sitl_default none and jMAVSim using ./Tools/jmavsim_run.sh.

Init File Location

The settings for each configuration target are defined in appropriately named files in /Firmware/cmake/configs. Within each file there is a setting config_sitl_rcS_dir that defines the location of the folder where the configuration stores its init files.

In the cmake config file for posix_sitl_ekf2 you can see that the init file will be stored in the folder: Firmware/posix-configs/SITL/init/ekf2/.

set(config_sitl_rcS_dir
    posix-configs/SITL/init/ekf2
    )

Generally the init files are located using a consistent folder naming convention. For example, make posix_sitl_ekf2 gazebo_iris corresponds to the following folder structure:

Firmware/
  posix-configs/  (os=posix)
    SITL/         (platform=sitl)
      init/
        ekf2/     (feature=ekf2)
          iris    (init file name)

Example Startup File

A slightly reduced version of the startup file for make posix_sitl_ekf2 gazebo_iris (/Firmware/posix-configs/SITL/init/ekf2/iris) is shown below.

uorb start
param load
dataman start
param set BAT_N_CELLS 3
param set CAL_ACC0_ID 1376264
param set CAL_ACC0_XOFF 0.01
...
...
param set SYS_MC_EST_GROUP 2
param set SYS_RESTART_TYPE 2
replay tryapplyparams
simulator start -s
tone_alarm start
gyrosim start
accelsim start
barosim start
adcsim start
gpssim start
pwm_out_sim mode_pwm
sensors start
commander start
land_detector start multicopter
navigator start
ekf2 start
mc_pos_control start
mc_att_control start
mixer load /dev/pwm_output0 ROMFS/px4fmu_common/mixers/quad_dc.main.mix
mavlink start -u 14556 -r 4000000
mavlink start -u 14557 -r 4000000 -m onboard -o 14540
mavlink stream -r 50 -s POSITION_TARGET_LOCAL_NED -u 14556
mavlink stream -r 50 -s LOCAL_POSITION_NED -u 14556
mavlink stream -r 50 -s GLOBAL_POSITION_INT -u 14556
mavlink stream -r 50 -s ATTITUDE -u 14556
mavlink stream -r 50 -s ATTITUDE_QUATERNION -u 14556
mavlink stream -r 50 -s ATTITUDE_TARGET -u 14556
mavlink stream -r 50 -s SERVO_OUTPUT_RAW_0 -u 14556
mavlink stream -r 20 -s RC_CHANNELS -u 14556
mavlink stream -r 250 -s HIGHRES_IMU -u 14556
mavlink stream -r 10 -s OPTICAL_FLOW_RAD -u 14556
logger start -e -t
mavlink boot_complete
replay trystart

Note the sections that set parameters, start simulator drivers and other modules. A few of the more relevant lines for simulation are highlighted below.

1. Simulator being started:

   simulator start -s


2. PWM out mode being set for simulator:

   pwm_out_sim mode_pwm


3. Set MAVLink ports:

   • This line starts the MAVLink instance for connecting to offboard APIs. It broadcasts on 14540 and listens for responses on 14557. The -m onboard flag specifies a set of messages that will be streamed over the interface.

      mavlink start -u 14557 -r 4000000 -m onboard -o 14540


   • This line starts MAVLink instance for connecting to QGroundControl/GCSs. PX4 listens for messages on port 14556.

     mavlink start -u 14556 -r 4000000


     • The broadcast port is not explicitly set (the default is used: 14550).
     • The messages that are streamed over this interface are specified using mavlink stream as shown below:

       mavlink stream -r 50 -s POSITION_TARGET_LOCAL_NED -u 14556
       mavlink stream -r 50 -s LOCAL_POSITION_NED -u 14556
       ...


For more information about using the MAVLink module see Modules Reference: Communication > MAVLink.

HITL Simulation Environment

With Hardware-in-the-Loop (HITL) simulation the normal PX4 firmware is run on real hardware. The HITL Simulation Environment in documented in: HITL Simulation.

Joystick/Gamepad Integration

QGroundControl desktop versions can connect to a USB Joystick/Gamepad and send its movement commands and button presses to PX4 over MAVLink. This works on both SITL and HITL simulations, and allows you to directly control the simulated vehicle. If you don't have a joystick you can alternatively control the vehicle using QGroundControl's onscreen virtual thumbsticks.

For setup information see the QGroundControl User Guide:

• Joystick Setup
• Virtual Joystick

Camera Simulation

PX4 supports capture of both still images and video from within the Gazebo simulated environment. This can be enabled/set up as described in Gazebo > Video Streaming.

The simulated camera is a gazebo plugin that implements the MAVLink Camera Protocol. PX4 connects/integrates with this camera in exactly the same way as it would with any other MAVLink camera:

1. TRIG_INTERFACE must be set to 3 to configure the camera trigger driver for use with a MAVLink camera

   In this mode the driver just sends a CAMERA_TRIGGER message whenever an image capture is requested. For more information see Camera Trigger.

2. PX4 must forward all camera commands between the GCS and the (simulator) MAVLink Camera. You can do this by starting mavlink with the -f flag as shown, specifying the UDP ports for the new connection.

   mavlink start -u 14558 -o 14530 -r 4000 -f -m camera


   More than just the camera MAVLink messages will be forwarded, but the camera will ignore those that it doesn't consider relevant.

The same approach can be used by other simulators to implement camera support.
